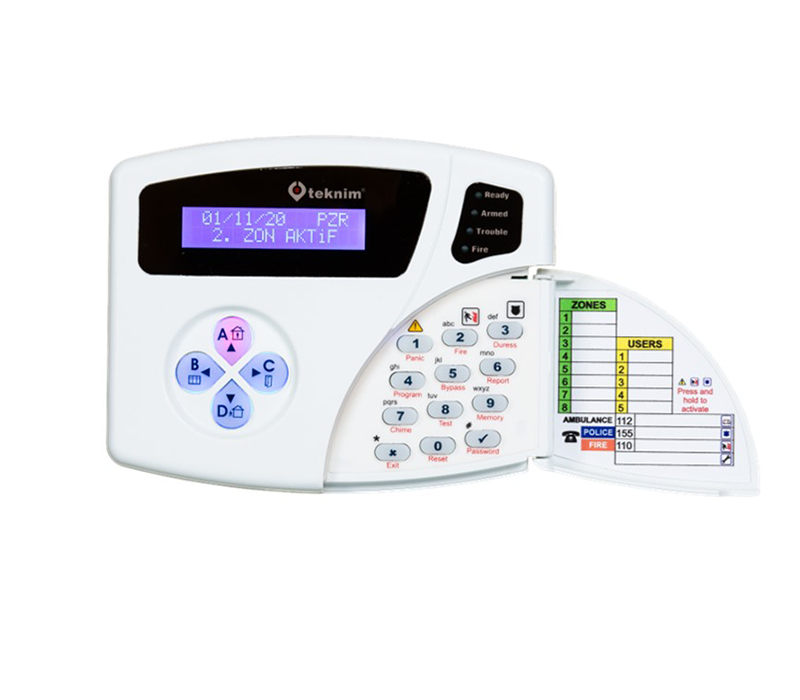

VPC-301B

LCD KEYPAD

VPC-301B

General Features
TDS-EN-0005/Rev.No:00-11.10.2012
Ÿ Backlit, two lines, 32 character LCD screen.
Ÿ Compatible with all Teknim VAP series alarm
panels and can be used with all Teknim VPC
series keypads, except VPC-104.
Ÿ Backlit, multi-functional silicone keys.
Ÿ 4 special buttons for each partition for quick &
partial arm with backlight and activation light.
Ÿ Internal buzzer.
Ÿ Ability to read event log.
Ÿ Automatic key light when a motion detected
in a determined zone.
Ÿ Chime feature. (Warning with sound and light
when the determined zones active or inactive)
Ÿ Smoke detector reset connected to the PGM
by keypad.
Ÿ Special keys for panic, fire and duress alarm.
Ÿ Energy saving mode for mains failure.
Ÿ Auto protection for wrong passwords entered
5 times.
Ÿ Sabotage switch. (No need additional cable)
Ÿ Alternately on screen thermometer/time/date
and auxiliary texts.
Ÿ Easy, on-screen programming through the
menu system.
Ÿ Multi language support.
Ÿ Easy navigation across the menus with the
arrow keys and shortcut keys.
Ÿ Green (standart) or blue (optional), two backlit
options.
Ÿ Dimensions: 120x150x23mm
Ÿ Weight: 191g
