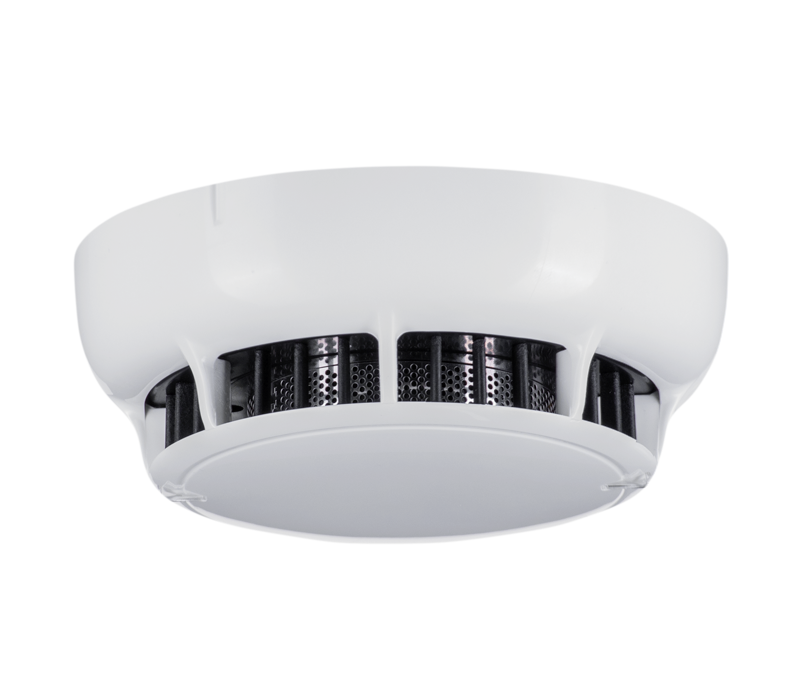

TFD-3250

CONVENTIONAL OPTICAL SMOKE + HEAT DETECTOR

TFD-3250

GENERAL SPECIFICATIONS
- Conforms to EN 54-7 and EN54-5 Standards
-Detects smoke particles in the environment via Light Scatter
principle and generates alarm
- Detector is A2S class, and alarm is activated at 55oC
- 2 LED indicators enabling viewing from all directions
- Two different colors of LEDs to individually display error and
alarm conditions (Blue/Red)
- Metallic cage and special protection circuit elements to increase
EMC and LVD resistance and to prevent associated faulty alarms
- Special software algorithms to eliminate sudden dust, smoke, etc.
external factors that may result in faulty alarms
- Metallic cage preventing entrance of bugs, flies and foreign objects
into detector sensing chamber
- Adaptive protection preventing faulty alarms by sampling the
environment continuously
- Advanced pollution algorithm that continuously measures
pollution level and warning the user from detector and panel
screen for stabile and accurate operation
- Insert type contact structure eliminating non-contact problems
- Parallel indicator light connection option
- Easy to clean smoke chamber
- Aesthetic and elegant design fits any environment
- Compatible with any brand of conventional fire panel

Other Informations

TFD-3250 Conventional Optical Smoke + Heat Detector uses optical and heat sensing technologies. Detector has a
series of algorithms developed to minimize erroneous detections. It can provide pollution warning, smoke chamber
can be easily cleaned.
